| MODEL | IVR-2400LBKS | |
| CAPACITY | 2400VA/ 1440W | |
| INPUT | ||
| Voltage | 230 VAC | |
| Acceptable Voltage Range | 90-280 VAC | |
| Frequency | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | ± 10% | |
| Efficiency (Peak) | 85% | |
| Transfer Time | 20 ms typical | |
| Waveform (Batt. Mode) | Simulated sine wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24 VDC | |
| Floating Charge Voltage | 27.4 VDC ±2% | |
| Low Battery Alarm Voltage | 20.4Vdc ±2% | |
| Shutdown Voltage | 19.8Vdc ±2% | |
| Overcharge Protection | 30.0Vdc ±2% | |
| Maximum Charge Current | 10 A or 20 A (Selectable) | |
| PROTECTION | ||
| Full Protection | Overload, short circuit and polarity reverse protection | |
| PHYSICAL | ||
| Dimension, D X W X H (mm) | 300 x 360 x 88 | |
| Net Weight (kgs) | 4.8 | |
| OPERATING ENVIRONMENT | ||
| Humidity | 0 to 90% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0℃ to 40℃ | |
| Storage Temperature | -15℃ to 50℃ | |

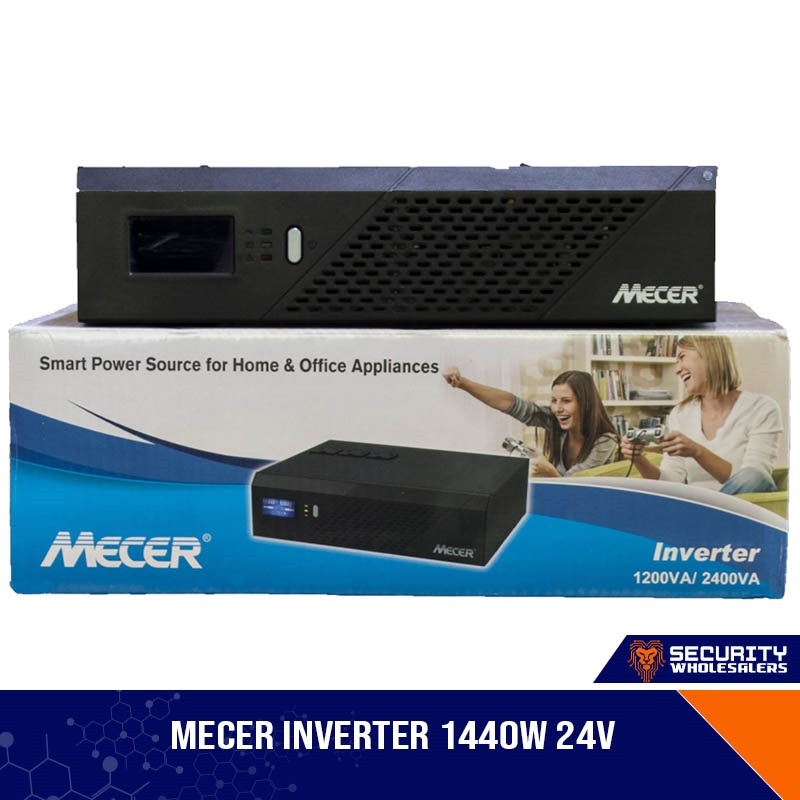

Mecer 24V Power Inverter – Black (1440W)
R3 299,00
