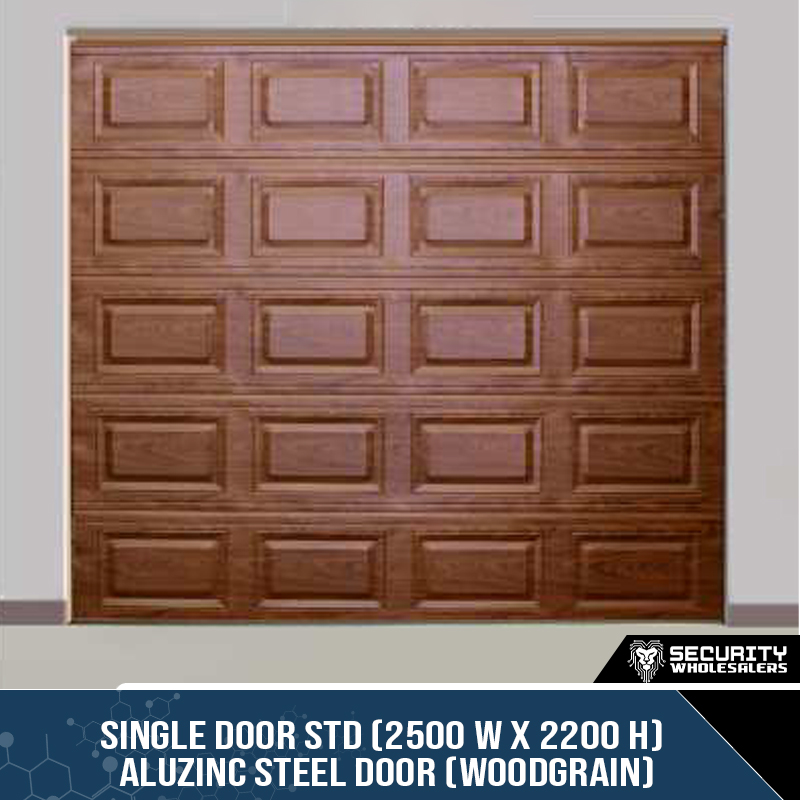

This specification describes a premium, low-maintenance sectional garage door designed for a standard single-vehicle opening. It offers the classic aesthetic of timber combined with the strength and durability of modern alloy-coated steel.
📋 Technical Specifications & Dimensions
- Width: 2500 mm (Standard single door width)
- Height: 2200 mm (Standard single door height)
- Material: Aluzinc Steel (High-tensile steel coated with 55% Aluminium, 43.4% Zinc, and 1.6% Silicon)
- Surface Texture: Embossed Woodgrain (Mimics natural wood texture)
- Door Type: Sectional (4 to 5 horizontal panels hinged together)
- Operation: Vertical-lift tracks that store the door flat against the garage ceiling
🛡️ Material Benefits & Engineering
- Corrosion Resistance: The aluminium-zinc coating provides up to four times the atmospheric corrosion resistance of conventional galvanized steel, making it ideal for harsh weather.
- Cut-Edge Protection: The zinc component provides galvanic protection, automatically protecting bare steel edges from rusting if the door is scratched or cut.
- Lightweight Strength: Considerably lighter than solid timber doors, which reduces mechanical wear on the torsion springs, cables, tracks, and garage motor.
- Structural Integrity: Reinforced steel panels resist warping, cracking, and swelling caused by temperature shifts or moisture.
✨ Aesthetics & Finish
- Woodgrain Embossing: The face of each panel features a distinct faux-wood grain pattern, adding visual depth and hiding minor surface dust or scratches.
- Baked-On Paint Finish: Coated with a UV-stabilized, weather-resistant polyester paint system that resists fading, peeling, and chalking in strong sunlight.
- Panel Profiles: Available in sleek modern horizontal slats or traditional raised blocks to match different architectural styles.
🔧 Installation & Maintenance Requirements
- Space Saving: Operates straight up and down on tracks, meaning cars can park millimetres away from the door without obstructing its movement.
- Zero Varnishing: Unlike real timber, it never requires regular sanding, sealing, or oiling.
- Easy Cleaning: Maintenance is limited to a simple wash down with water and mild detergent once every few months to remove dust, grit, or salt spray.
