200 Meter HDMI KVM Extender Balun SET (Keyboard, Video, Mouse) HDMI over IP extender

200 Meter HDMI KVM Extender Balun SET (Keyboard, Video, Mouse) HDMI over IP extender

HDMI Extenders are a convenient and easy way to extend your HDMI video signal over long distances. This Extender set also supports USB Keyboard / Mouse inputs to control a PC or Laptop in a Far end or Secure Room via a remote location. It Features a HDMI Passthrough Port on the Transmitter side to ensure the signal is split to nearby display and to far end display.

Specifications:

• Signal transmission : Full Copper or HCCA CAT6 recommended for maximum transmission distance. Using CAT5/CAT5e Cables or CCA Cables will work but transmission distances may vary.
• Support input/output resolutions: 480i/p,576p,720p,1080i/p;
• Support point-to-point mode Transmitter –> CAT6 Cable –> Receiver
• Plug and play, no need for additional software;
• Supports Wired USB Keyboard and Mouse. Wireless Units may work but not tested due to additional power usage of Mouse/Keyboard USB Dongles
• Audio Sample rate : 32kHz,44.1kHz,48kHz
• ESD Protection Human Body Model : ± 8kV (air-gap discharge), ± 4kV (contact discharge)
• Operating Temperature : 0˚C ~ 40˚C / 32˚F ~ 104˚F

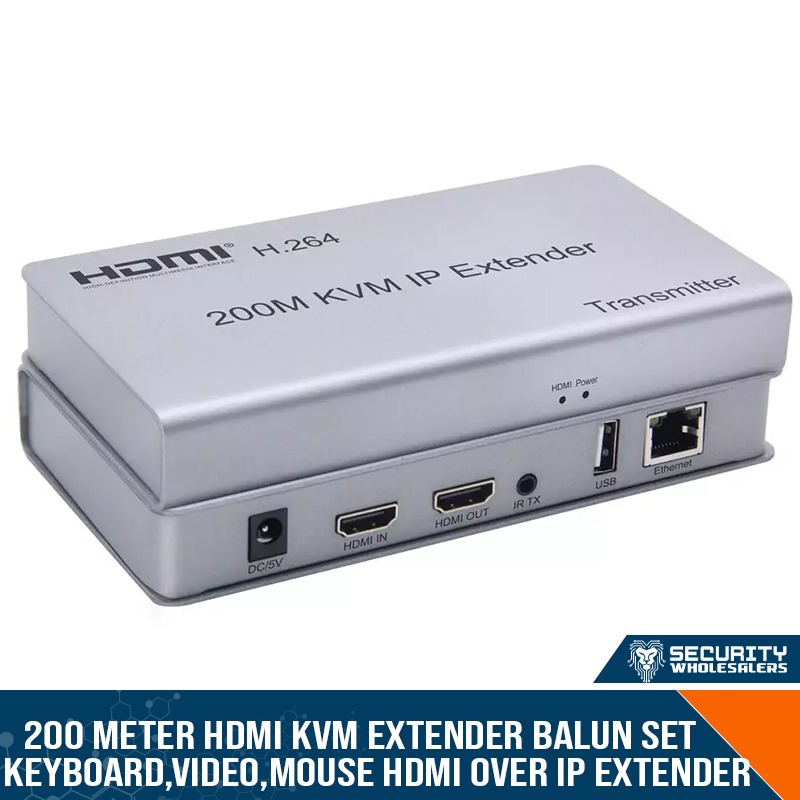

Transmitter & Receiver Inputs and Outputs

Sample Installation Diagram 1:1 Transmitter to Receiver used for reference only : Supports 1080p Max output resolutions

Features:

• Support HDMI 1.3/HDCP1.1&1.2
• Support point-to-point mode, one point-to-many mode and cascade connection mode.
• 802.3 Ethernet standard.
• The design of pure hardware, plug and play, no need for additional software.
• Support long distance control with a keyboard and mouse to a PC in a Secure or Remote Room

Specifications:

Package contents:

• 1x  Transmitter
• 1x  Receiver
• 2x  5V/1A Power Supply.
• 1x User’s Manual

Cheaper CAT6 CCA Ethernet Network Cable can be used with this extender but only to about 40-60% of the max distance indicated on extender. For Full Distance installations and best transmission CAT6 Full Copper or HCCA Cable.
