Description
DH-HAC-T1A21P

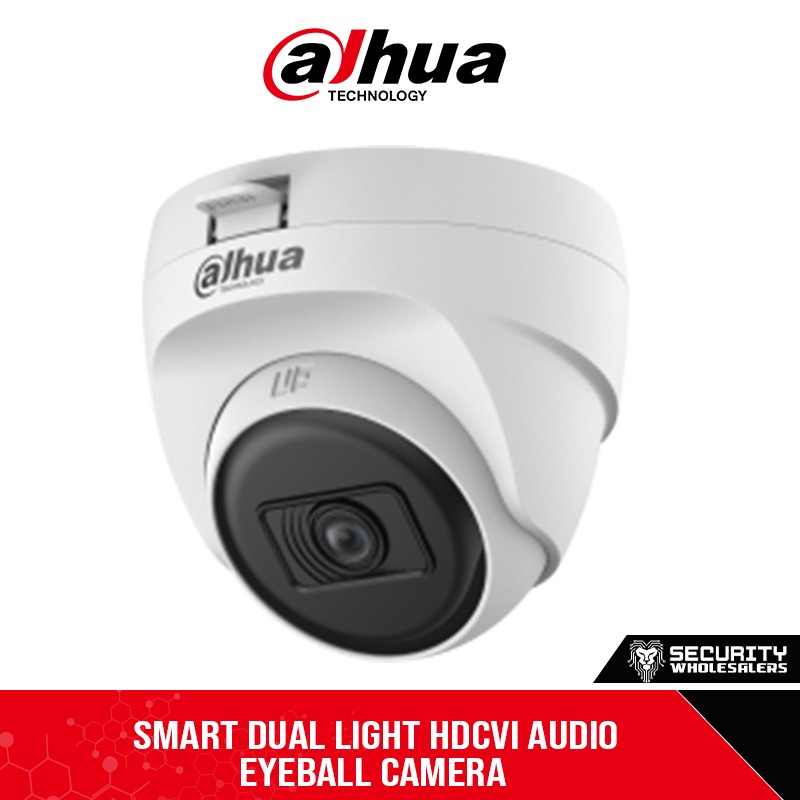

Dahua 2MP HDCVI IR Eyeball Camera
Datasheet:
DH-HAC-T1A21P
Experience the clarity of 1080P full HD video and the convenience of utilising your existing cabling infrastructure with HDCVI technology. The Cooper series 1080P HDCVI camera boasts a compact design and delivers high-quality images at an affordable price point. It provides multiple vari-focal and fixed lens options, along with a user-friendly multi-language OSD and switchable HD/SD output. The camera’s structural adaptability and exceptional cost-effectiveness render it a perfect choice for small and medium-sized business (SMB) solutions.
- Max. 30fps@1080P
- HD and SD output switchable
- 2.8mm Fixed Lens
- Max. IR length 20m, Smart IR
- DC12V
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1 / 2.7″ CMOS |
| Effective Pixels | 1920 (H) × 1080 (V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1 / 25 ~ 1 / 100000 s; NTSC: 1 / 30 ~ 1 / 100000 s |
| Minimum Illumination | 0.04 Lux / F1.85, 30 IRE; 0 Lux (IR on) |
| S / N Ratio | More than 65 dB |
| IR Distance | Up to 20 m (66 ft) |
| IR On / Off Control | Auto / Manual |
| Lens | |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6 mm (Optional: 2.8 mm, 6 mm) |
| Max Aperture | F1.85 |
| Angle of View | H: 93° (Optional: 103°, 54.7°) |
| Focus Control | N / A |
| Close Focus Distance | 3.6 mm: 800 mm (31.50″); 2.8 mm: 500 mm (19.69″); 6 mm: 2000 mm (78.74″) |
| DORI Distance | 2.8mm: Detect: 37m (121ft), Observe: 15m (49ft), Recognise: 8m (26ft), Identify: 4m (14ft) 3.6mm: Detect: 51m (167ft), Observe: 20m (66ft), Recognise: 10m (33ft), Identify: 5m (17ft) 6mm: Detect: 80m (262ft), Observe: 32m (105ft), Recognise: 16m (51ft), Identify: 8m (26ft) |
| Pan / Tilt / Rotation | Pan: 0° ~ 360°; Tilt: 0° ~ 78°; Rotation: 0° ~ 360° |
| Video | |
| Resolution | 1080P (1920 × 1080) |
| Frame Rate | 25 / 30 fps @ 1080P; 25 / 30 / 50 / 60 fps @ 720P |
| Video Output | 1-channel BNC high-definition video output / CVBS video output (switchable) |
| Day / Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| WDR | DWDR |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4); FCC (CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014) |
| Interface | |
| Audio Interface | N / A |
| Electrical | |
| Power Supply | 12 V DC ±30% |
| Power Consumption | Max 2.3 W (12 V DC, IR on) |
| Environmental | |
| Operating Conditions | -40 °C ~ +60 °C (-40 °F ~ +140 °F); Less than 95% RH; Startup: above -40 °C (-40 °F) |
| Storage Conditions | -40 °C ~ +60 °C (-40 °F ~ +140 °F); Less than 95% RH |
| Ingress Protection & Vandal Resistance | N / A |
| Construction | |
| Casing | Plastic |
| Dimensions | 85 mm × 85 mm × 69 mm (3.35″ × 3.35″ × 2.72″) |
| Net Weight | 0.09 kg (0.20 lb) |
| Gross Weight | 0.13 kg (0.27 lb) |
