- Built-in MPPT solar charger
- Supports single phase or three-phase asynchronous motor depending on models
- Built-in full protection and self-diagnosis
- Soft start function prevents water hammer effect and extends system lifecycle
- Comprehensive LEDs and display screen for real-time systems status
- Remote monitoring through RS-485
- Optional remote panel available

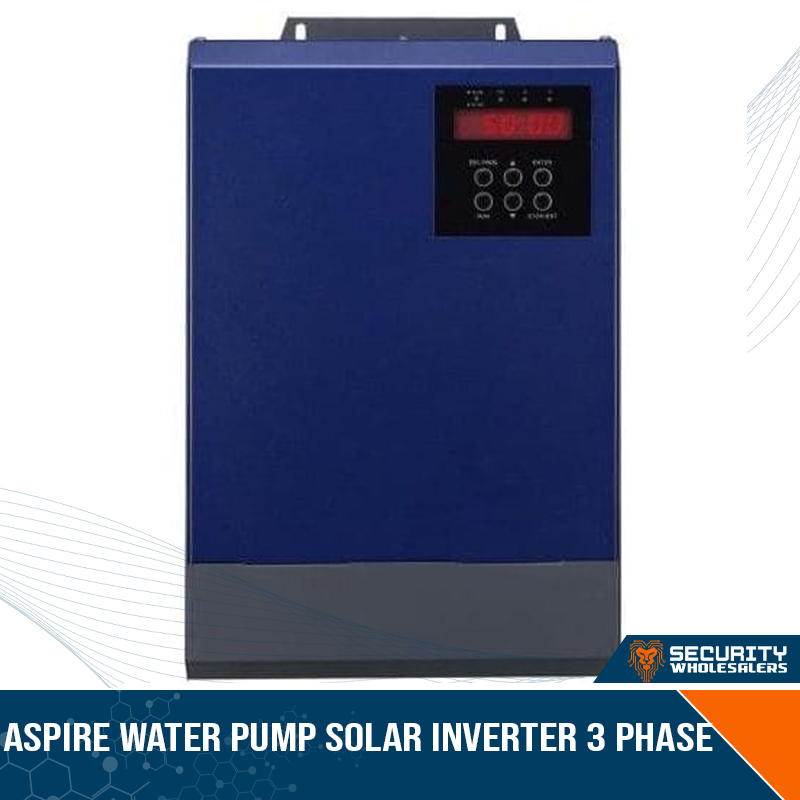

| Specification | SOL-I-AS-2 |
|---|---|
| Model | Aspire 2.2KW |
| RATED OUTPUT POWER | 2200 W (3HP) (supports 0.75~3HP water pump) |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 540 VDC / 800 VDC |
| Start-up Voltage | 250 VDC |
| MPPT Voltage Range | 250 VDC ~ 780 VDC |
| Number of MPP Trackers | 1 |
| AC INPUT | |
| Input Voltage | N/A |
| Input Frequency | N/A |
| OUTPUT | |
| Nominal Voltage | 3 x 380/400/415/440 VAC |
| Efficiency | > 97% |
| Nominal Output Current | 5.0 A |
| Motor Type | Three-phase asynchronous motor |
| Frequency Precision | 0.2% |
| PROTECTION | |
| Full Protection | Phase lost, dry pumping, motor locked, weak sunlight, over-voltage, under-voltage, over-current, surge, over temperature, and short circuit protection |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 110 x 230 x 342 |
| Net Weight (kgs) | 5.5 |
| Type of Mechanical Protection | IP20 |
| INTERFACE | |
| Communication Port | RS-232/RS-485 |
| ENVIRONMENT | |
| Humidity | < 95% RH (Non-condensing) |
| Operating Temperature | -20°C ~ 45°C at 100% full load, 46°C ~ 60°C power derating |
