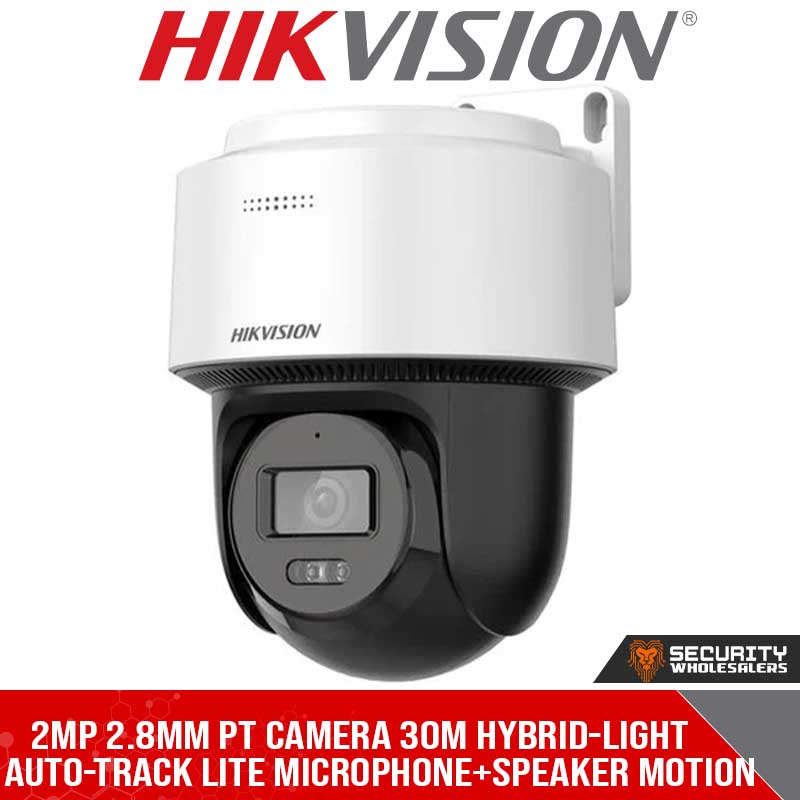

- High quality imaging with 2 MP resolution
- Support Human Detection and Auto Tracking Lite
- Smart Hybrid Light: Advanced technology with long range
- Hik-Connect cloud service and APP for remote management and device views
- Built-in microphone and speaker for real-time audio security
- Built-in memory card slot, supports microSD/SDHC/SDXC card, up to 512GB
- Water and dust resistant (IP66)
Â
Camera
- Image Sensor 1/2.9″ Progressive Scan CMOS
- Maximum Resolution 1920×1080
- Min. Illumination Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with light
Lens
- Focal Length 2.8mm, 4mm
- Field of view
2.8mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°
4mm, horizontal FOV 81°, vertical FOV 44°, diagonal FOV 97°
- Aperture F2.0
Enlightening
- Supplementary Light Type IR, White Light
- Supplementary Light Range White light distance: up to 30m, IR distance: up to 30m
- IR Wavelength 850 miles
PTZ
- Movement Range (Pan) 0° to 345°
- Range of Motion (Tilt) 0° to 80°
- Pan Speed ​​Up to 25°/s
- Tilt Speed ​​Up to 20°/s
Video
- Mainstream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360 ）
60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression H.265, H.264, MJPEG
- Video Bitrate 32 Kbps to 8 Mbps
- H.264 Type Baseline profile,Main profile,High profile
- H.265 Type Main profile
Sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM//AAC-LC
- Audio Bit Rate 16 Kbps (G.722.1)/64 Kbps (G.711)/up to 32192 Kbps (MP2L2)/16 Kbps (G.726)/up to 1664 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
- Audio Sampling Rate 8 kHz,16 kHz
- Environmental Noise Filtering Yes
Network
- Protocols IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- Image Settings Saturation, brightness, contrast and sharpness can be adjusted by client software or web browser
- Wide Dynamic Range (WDR) Digital WDR
- Image Enhancement BLC, HLC, 3D DNR
Interface
- Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Internal Microphone 1 internal microphone
- Onboard Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
- Internal Speaker 1 internal speaker
Activity
- Basic Activity Motion detection (supports alarm triggering based on specified target type (human)), video tampering alarm, exception
- Connection: Upload to FTP/SD card, report to surveillance center, send email, trigger capture, voice alert, auto tracking lite
General
- Strength
12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5W
- Dimension
Camera size: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″)
With package size: 224mm × 164mm × 230mm (8.82 × 6.46″ × 9.06″)”
- Weight
Camera weight: 600g (1.32lb.)
Package weight: 900g (2.0lbs.)
- Material Plastic
- Operating Condition -30 °C to 40 °C (-22 °F to 104 °F). Humidity 90% or less (non-condensing)
- Protection IP66 (IEC60529-2013)
