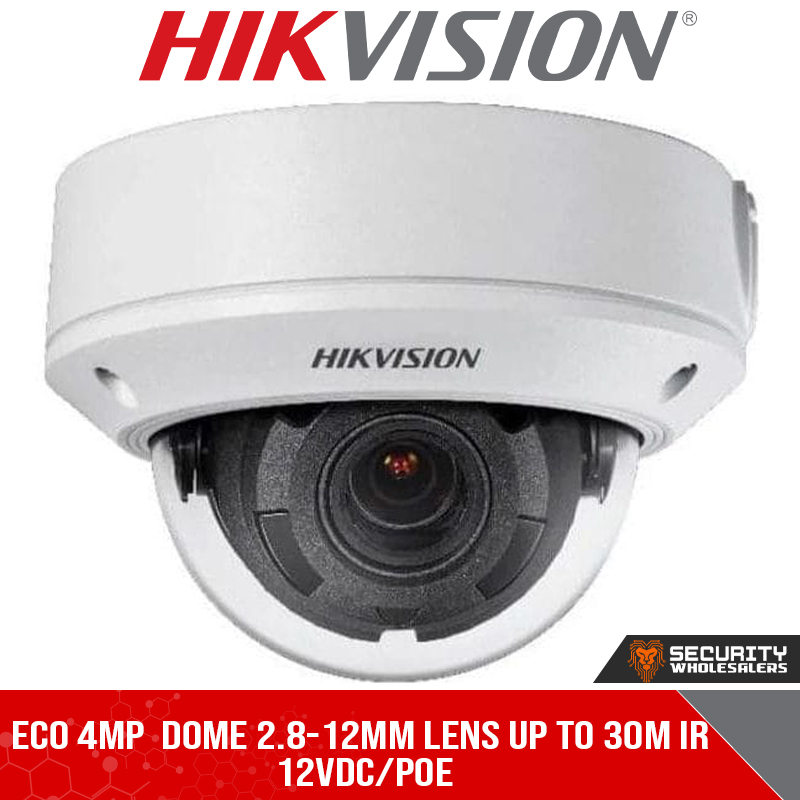

- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Up to 256 GB memory card slot for storage
- 2.8 to 12 mm motorised varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67) and vandal proof (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Colour: 0.005 Lux @ (F1.6, AGC ON), B / W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 355° / tilt: 0° to 70° / rotation: 0° to 355° |
| Lens | |
| Lens Type | Varifocal Lens, motorised lens |
| Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 102° to 31° / vertical FOV 54° to 17° / diagonal FOV 123° to 35° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Illuminator | |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
| Video | |
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 / H.264 / MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Compression | -S: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC |
| Audio Bit Rate | -S: 64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -S: 8 kHz / 16 kHz |
| Environment Noise Filtering | -S: Yes |
| Network | |
| Protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnPâ„¢, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL / TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User / Host | Up to 32 users. 3 levels: administrator, operator and user |
| Network Storage | MicroSD / SDHC / SDXC card (256 GB) local storage |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day / Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, 3D DNR |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M / 100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Audio | -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | -S: 1 input, 1 output, max. 12 VDC, 30 mA |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
| General | |
| Power | 12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W |
| Material | Metal |
| Camera Dimension | Ø141 mm × 99.9 mm (Ø5.6″ × 3.9″) |
| Package Dimension | 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″) |
| Camera Weight | Approx. 820 g (1.8 lb.) |
| With Package Weight | Approx. 1200 g (2.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B) / CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014) / RCM (AS / NZS CISPR 32: 2015) / IC VoC (ICES-003: Issue 6, 2016) / KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1) / CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) / CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) / BIS (IS 13252 (Part 1):2010 + A1:2013 + A2:2015) |
| Environment | CE-RoHS (2011 / 65 / EU) / WEEE (2012 / 19 / EU) / Reach (Regulation (EC) No 1907 / 2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
