| Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Sensor | 1/1.8″ Progressive Scan CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Resolution | 2688 × 1520 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Shutter Time | 1/3 s to 1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day & Night | IR cut filter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length & FOV | 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7° 4 mm, horizontal FOV 89.2°, vertical FOV 45.5°, diagonal FOV 108.2° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lens Mount | M16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Aperture | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Depth of Field | 2.8 mm: 2.5 m to ∞ 4 mm: 3.1 m to ∞ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI | 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Illuminator | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supplement Light Type | IR,White Light | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supplement Light Range | Up to 60 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Supplement Light | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IR Wavelength | 850 nm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | 32 Kbps to 8 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| H.264 Type | Baseline Profile,Main Profile,High Profile | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| H.265 Type | Main Profile | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate Control | CBR,VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Scalable Video Coding (SVC) | H.264 and H.265 encoding | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Simultaneous Live View | Up to 6 channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Client | iVMS-4200,Hik-Connect,Hik-Central | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Parameters Switch | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night Switch | Day,Night,Auto,Schedule | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image Enhancement | BLC,HLC,3D DNR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SNR | ≥ 52 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wide Dynamic Range (WDR) | 130 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Privacy Mask | 4 programmable polygon privacy masks | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reset Key | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Event | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Event | Scene change detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Deep Learning Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Capture | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power | 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material | Front cover: Metal, body: Metal, bracket: Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimension | 286.7 mm × 93.3 mm × 91.2 mm (11.3″ × 3.7″ × 3.6″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Package Dimension | 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | Approx. 1085 g (2.4 lb.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| With Package Weight | Approx. 1639 g (3.6 lb.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General Function | Heartbeat,mirror,password reset via email,pixel counter,anti-banding | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Approval | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environment | CE-RoHS: 2011/65/EU | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IP67: IEC 60529-2013 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Hybrid ColorVu 4MP bullet 2.8mm lens 40m hybrid IR/white light 130dB WDR 12VDC/POE (DS-2CD2047G2H-LI 2.8MM)
R2 929,00
ColorVu 8MP bullet 4mm lens up to 40m illumination 130dB WDR microphone 1 audio/ 1 alarm I/O built-in strobe-light & siren 12VDC/POE (DS-2CD2T87G2P-LSU/SL(C))
R7 149,00

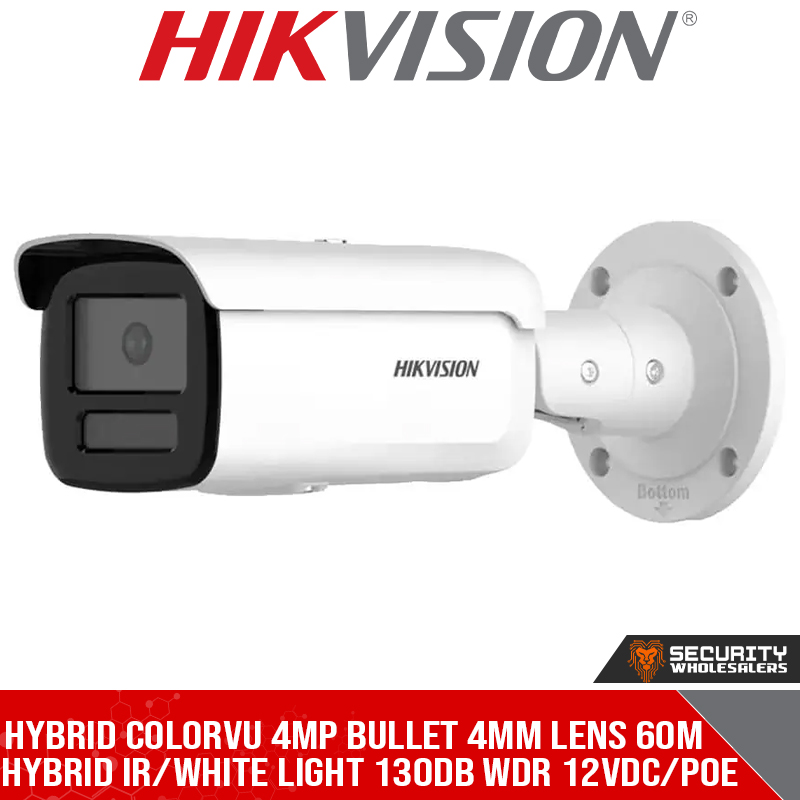

Hybrid ColorVu 4MP bullet 4mm lens 60m hybrid IR/white light 130dB WDR 12VDC/POE (DS-2CD2T47G2H-LI 4MM)
R3 699,00
Equipped with a 4 MP high-resolution sensor, this fixed bullet network camera delivers clear and detailed images, ensuring effective surveillance and security. The device features ColorVu technology, which provides vivid color rendering and full-time color imaging, even in low-light environments. This is enhanced by an integrated smart hybrid light that effectively illuminates scenes in complete darkness up to a certain distance.
The camera supports a 2.8mm fixed lens, offering a wide field of view for comprehensive coverage. It is housed in a durable, weather-resistant casing, making it suitable for both indoor and outdoor use. Advanced features include motion detection, which triggers recording and alerts when movement is detected within the camera’s visual field.
For connectivity, the camera uses a standard Ethernet interface, facilitating seamless integration into existing network infrastructures and allowing for remote access and management. The device also supports H.265+ compression technology, which reduces bandwidth and storage requirements while maintaining high-quality video output. This camera is an effective solution for enhancing security in various settings.
