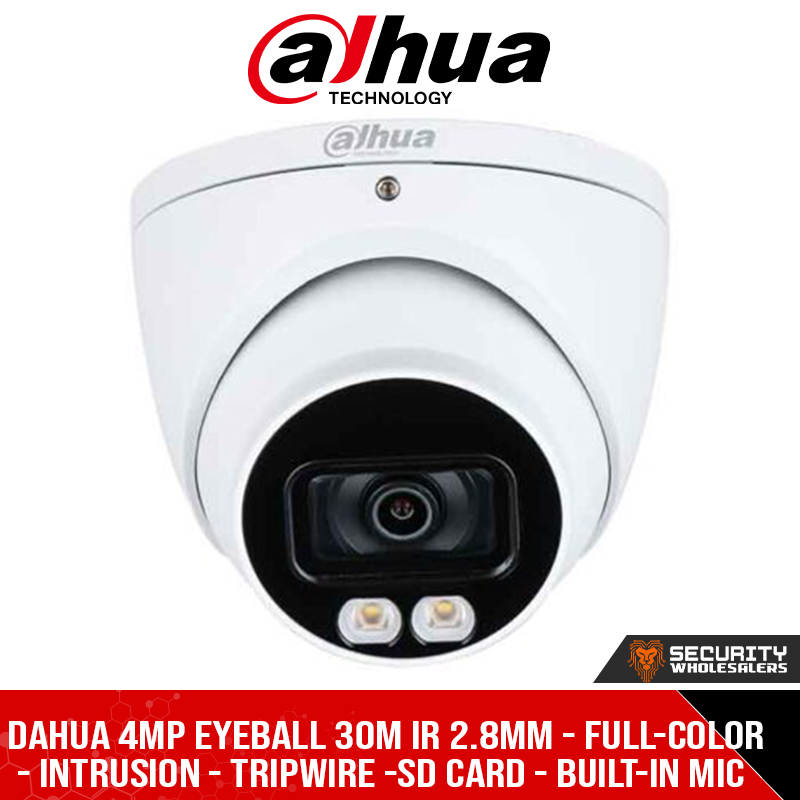

- 4MP, 1/3″ CMOS image sensor, low illuminance, high image definition
- Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm lights, max. illumination distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, scene changing, no SD card,
- SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Supports max. 256 GB Micro SD card and built-in Mic
- 12V DC/PoE power supply
- IP67 protection
| Specification | |
|---|---|
| Image Sensor | 1 / 3” 4Megapixel progressive CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1 / 3 s – 1 / 100,000 s |
| Minimum Illumination | 0.004 Lux@F1.0 |
| S / N Ratio | > 56 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On / Off Control | Auto / Manual |
| Illuminator Number | 2 (Warm light) |
| Pan / Tilt / Rotation Range | Pan: 0° – 360° Tilt: 0° – 78° Rotation: 0° – 360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm 3.6 mm |
| Max. Aperture | 2.8 mm: F1.0 3.6 mm: F1.0 |
| Field of View | 2.8 mm: Horizontal 96° × Vertical 51° × Diagonal 115° 3.6 mm: Horizontal 81° × Vertical 44° × Diagonal 97° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 1.3 m (4.3 ft) 3.6 mm: 1.8 m (5.9 ft) |
| DORI Distance | 2.8mm Detect: 56.0 m (183.7 ft) Observe: 22.4 m (73.5 ft) Recognise: 11.2 m (36.7 ft) Identify: 5.6 m (17.1 ft)3.6mm Detect: 72.0 m (236.2 ft) Observe: 28.8 m (94.5 ft) Recognise: 14.4 m (47.2 ft) Identify: 7.2 m (23.6 ft) |
| Smart Event | |
| IVS | Tripwire / Intrusion |
| Video | |
| Video Compression | H.265 / H.264 / H.264B / MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps – 20 fps) / 2560 × 1440 (1 fps – 25 / 30 fps) / Sub stream: 704 × 576 (1 fps – 20 / 25 fps) / 704 × 480 (1 fps – 20 / 30 fps) |
| Stream Capability | 2 streams |
| Resolution | 2688 × 1520 / 2560 × 1440 / 2304 × 1296 / 1080p / 1.3M / 720p / D1 / VGA / CIF |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps – 6144 kbps / H.265: 12 kbps – 6144 kbps |
| Day / Night | Color / B / W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0° / 90° / 180° / 270° (Support 90° / 270° with 2688 × 1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711A / G.711Mu / G.726 |
| Alarm | |
| Alarm Event | No SD card / SD card full / SD card error / network disconnection / IP conflict / motion detection / video tampering / tripwire / intrusion / illegal access / voltage detection / audio detection / safety exception |
| Network | |
| Network | RJ-45 (10 / 100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption / firmware encryption / configuration encryption / Digest / WSSE / account lockout / security logs / IP / MAC filtering / generation and importing of X.509 certification / syslog / HTTPS / 802.1x / trusted boot / trusted execution / trusted upgrade |
| Protocol | IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / Bonjour |
| Interoperability | ONVIF (Profile S / Profile G / Profile T) / CGI / P2P / Milestone / Genetec |
| User / Host | 20 (Total bandwidth: 72 M.) |
| Storage | FTP / Micro SD card (support max. 256 G) / NAS / SFTP |
| Browser | IE / Chrome / Firefox |
| Management Software | Smart PSS / DSS / DMSS |
| Mobile Phone | IOS / Android |
| Certification | |
| Certifications | Optional: CE-LVD: EN62368-1 / CE-EMC: Electromagnetic Compatibility Directive 2014 / 30 / EU / FCC: 47 CFR FCC Part 15, Subpart B |
| Power | |
| Power Supply | 12V DC / PoE (802.3af) |
| Power Consumption | < 7.4W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F) / less than ≤ 95% RH |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Inner core: metal / cover: plastic (pedestal: plastic) |
| Dimensions | 100.9 mm × Φ109.9 mm (4.0″ × Φ4.3″) |
| Net Weight | 0.365 kg (0.8 lb) |
| Gross Weight | 0.527 kg (1.2 lb) |
