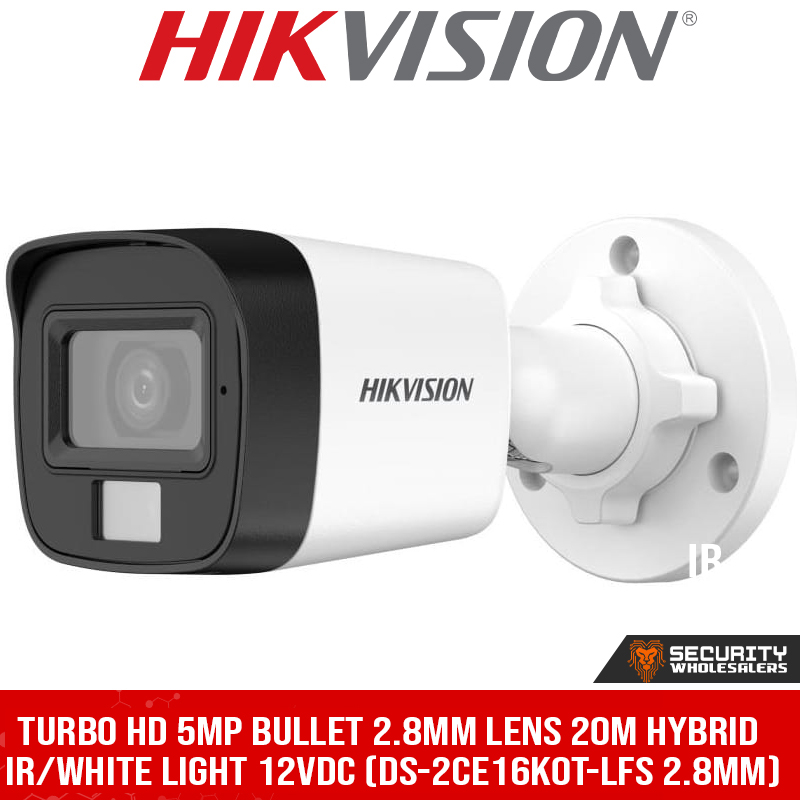

- High quality imaging with 3K, 2960 × 1665 resolution
- 2.8 mm fixed focal lens
- Up to 30 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS）
- Water and dust resistant (IP67)
- High quality audio with audio over coaxial cable, built-in mic
- Smart-Hybrid light, optimise your security with flexible lighting options
| Specification | Camera Image Sensor |
|---|---|
| Max. Resolution | 3K CMOS |
| Resolution | 2960 (H) × 1665 (V) |
| Min. Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | ICR Angle Adjustment |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
| Signal System | PAL/NTSC |
| Lens | Lens Type: 2.8 mm and 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm: Horizontal FOV – 104.9°, Vertical FOV – 67.3° |
| Diagonal FOV – 129.8° | |
| 3.6 mm: Horizontal FOV – 81.3°, Vertical FOV – 50.7° | |
| Diagonal FOV – 102.4° | |
| Lens Mount | M12 |
| Illuminator | Supplement Light Type: White Light, IR |
| Supplement Light Range | IR: Up to 30 m |
| White Light: Up to 20 m | |
| Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
| AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps | |
| CVI: 4 MP@25 fps/30 fps | |
| CVBS: PAL/NTSC | |
| Day/Night Mode | Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | DWDR/BLC/HLC/Global White Balance |
| AGC | Yes |
| Interface | Video Output: Switchable TVI/AHD/CVI/CVBS |
| Built-in Microphone | Yes |
| General | Material: Metal |
| Dimension: 138.8 mm × Ø70 mm (5.47″ × Ø2.76″) | |
| Weight: Approx. 270 g (0.60 lb.) | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ± 25% |
| *Recommended to use one power adapter per camera | |
| Consumption | Max. 3.3 W |
| Approval | Protection: IP67 |
