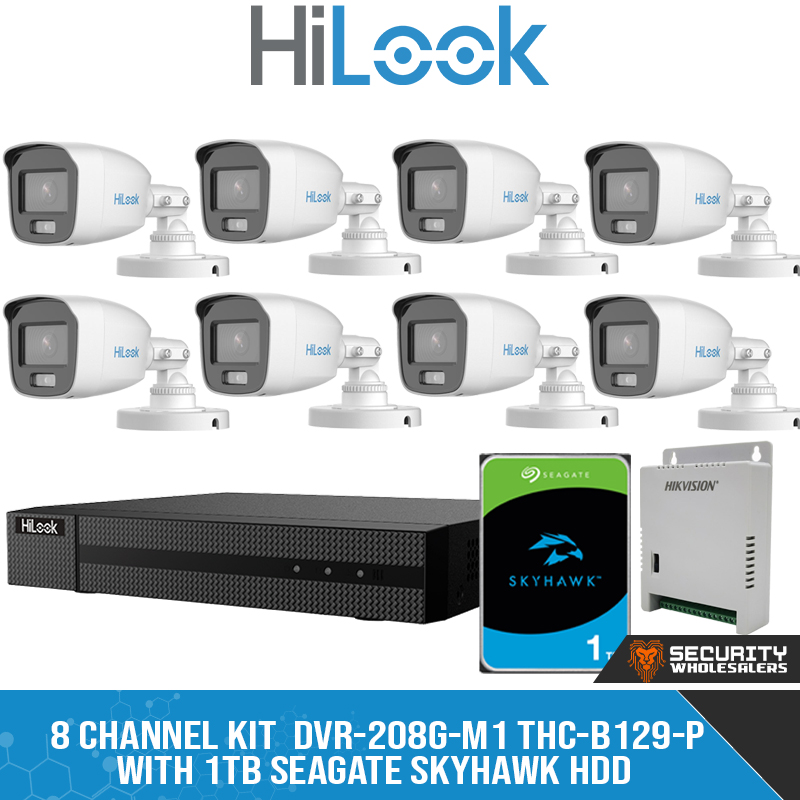

2 MP ColorVu Mini Bullet Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP66)
| Specification | Details |
|---|---|
| Motion Detection 2.0 | |
| Human / Vehicle Analysis | Deep learning-based motion detection 2.0 enabled by default for all analog channels; it classifies humans and vehicles, significantly reducing false alarms caused by objects like leaves and lights. Quick search by object or event type is supported. |
| Recording | |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Encoding Resolution | For 1080p stream access: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF For SD stream access: WD1 / 4CIF / VGA / CIF |
| Frame Rate | Main stream: For 1080p stream access: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF @ 15 fps For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF @ 15 fps For SD stream access: WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N) Sub-stream: For 1080p and 720p stream access: CIF / QVGA @ 15 fps For SD stream access: CIF / QVGA @ 25 fps (P) / 30 fps (N) |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 2-ch (up to 10-ch); up to 5 MP resolution; supports H.265+ / H.265 / H.264+ / H.264 IP cameras |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 1080p 25, 1080p 30, 720p 25, 720p 30 |
| AHD Input | 1080p 25, 1080p 30, 720p 25, 720p 30 |
| HDCVI Input | 1080p 25, 1080p 30, 720p 25, 720p 30 |
| CVBS Input | Support |
| HDMI Output | 1-ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz |
| VGA Output | 1-ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz |
| Video Output Mode | HDMI / VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | Reuses the first audio input |
| Synchronous Playback | 8-ch |
| Network | |
| Total Bandwidth | 72 Mbps |
| Network Protocol | TCP / IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS |
| Remote Connection | 64 |
| Network Interface | 1, RJ45 10 / 100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 4 TB capacity for each disk |
| USB Interface | Rear panel: 2 × USB 2.0 |
| Alarm In / Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | ≤ 17 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to +131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
| Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
