Description
VIC-MULTIPLUS-48-3000-35-50

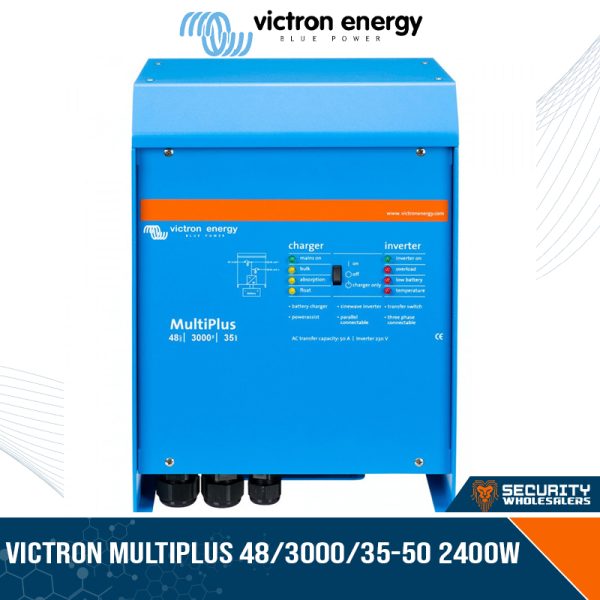

Victron MultiPlus 48/3000/35-50 2400W Inverter/Charger
The MultiPlus 3000VA is a powerful true sine wave inverter, with a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.
- Can be used in parallel operation
- Can be configured for a three-phase system
- Power Assist – boosting the capacity of shore or generator power
- High start-up power- for loads such as power converters for LED lamps, halogen lamps or electric tools
- Programmable relay
Specifications:
INVERTER:
Cont. Output Power at 25 ̊C (VA): 5000 VA
Cont. Output Power at 25 ̊C (W): 4500 W
Cont. Output Power at 40 ̊C (VA): 4000 W
Peak Power (W): 10.000 W
Maximum Efficiency (%): 95%
Zero Load Power (W): 25 W
Zero Load Power in AES Mode (W): 20 W
Zero Load Power in Search Mode (W): 6 W
CHARGER:
AC Input: Input voltage range 187 – 265 VAC, Input frequency 45 – 65 Hz
Charge Voltage Absorption (VDC): 14,4 / 28,8 / 57,6 VDC
Charge Voltage Float (VDC): 13,8 / 27,6 / 55,2 VDC
Storage Mode (VDC): 13,2 / 26,4 / 52,8 VDC
Charge Current House Battery (A): 120 / 20 A
Battery Temperature Sensor: Yes
