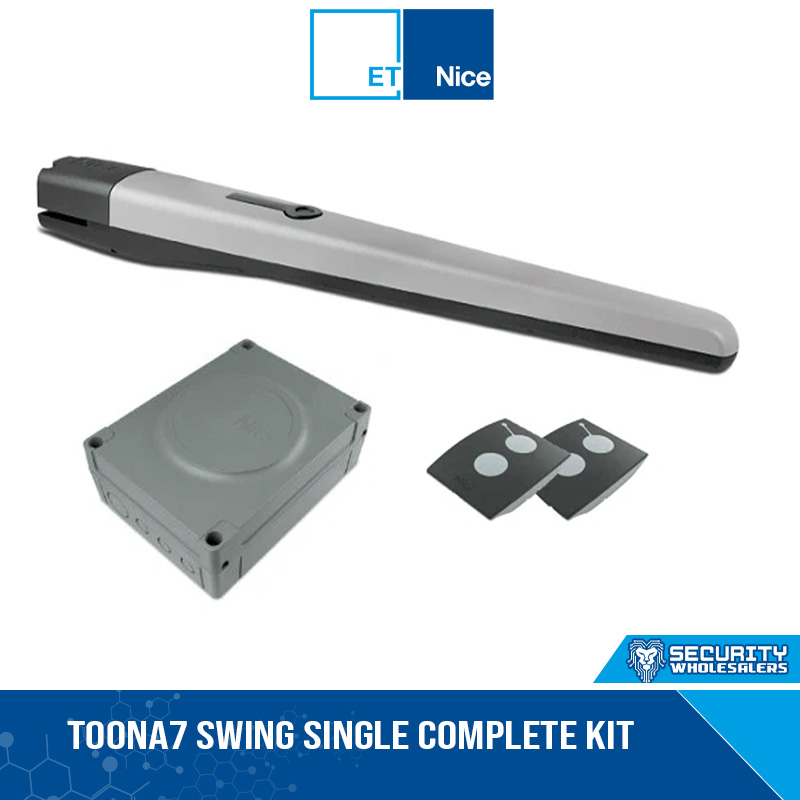

For swing gates with leaves up to 7 m. Electromechanical gear motor, surface mounted, powered at 24 Vdc, with magnetic encoder. Ideal for industrial installations, designed for intensive use.

Features & Benefits
Reliable: durability thanks to the housing, made up of two tough aluminium shells with polyester paint finish which is more resistant to atmospheric agents.
Internal moving parts completely in steel, light alloys and technopolymers.
Silent: patented layout of internal parts and lead nut in bronze.
Generously sized and practical connection compartment: rapid and easy access from above to internal parts located in the upper section of the motor.
Control unit Moonclever MC824H:
• simple programming, by means of a single key;
• self-learning of opening and closing limit positions;
• automatic fault diagnostics;
• programming of pause time;
• pedestrian pass door;
• deceleration on opening and closing;
• obstacle detection with dual technology;
• operation in event of power failure by means of optional rechargeable batteries (PS324);
• provision for connection of latest generation resistive sensitive edges.

• Code	TO7024
  Electrical data
  Power supply (Vac 50 Hz)	–
  Power supply (Vdc)	24
  Absorption (A)	5
  Power (W)	120
  Built-in capacitor (?F)	–
  Performance data
  Speed (m/s)	0.013
  Force (N)	2700
  Work cycle (cycles/hour)	41
  Dimensional and general data
  Protection level (IP)	44
  Working temp. ( °C Min/Max)	-20 ÷ +50
  Dimensions (mm)	1200x128x150 h
  Weight (kg)	15
