Description

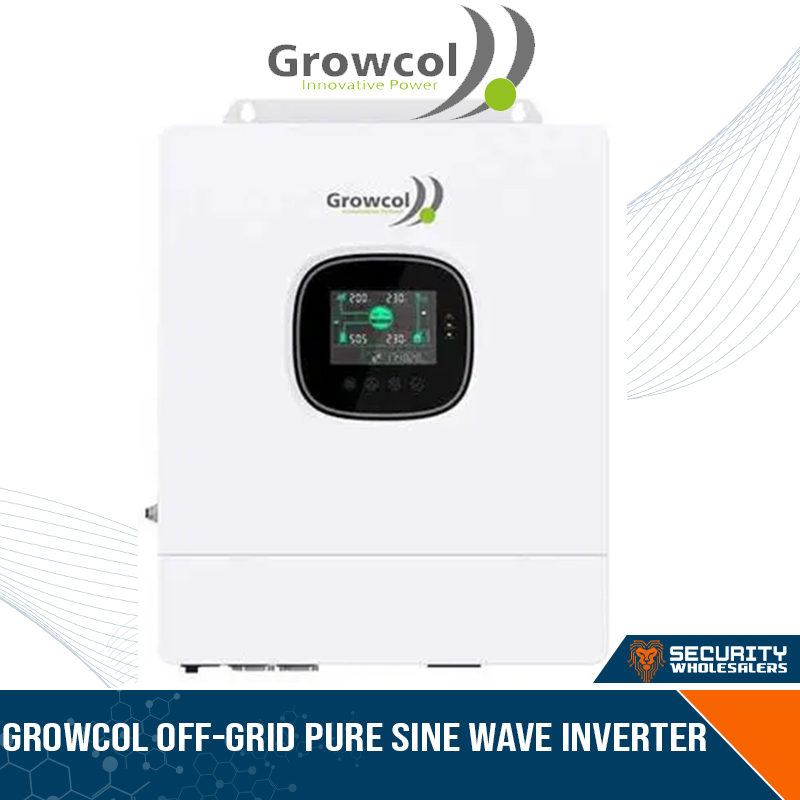

The Growcol 5kW Off-Grid Solar Storage Inverter is a powerful and efficient solution for powering your home or business. It seamlessly integrates solar energy and battery storage to provide reliable, clean, and uninterrupted power. With features like high power output, pure sine wave output, advanced MPPT solar charge controller, and intelligent battery management, this inverter ensures optimal performance and energy efficiency. The user-friendly interface and remote monitoring capabilities make it easy to install, operate, and manage.
| Feature | AYP 5K-S |
|---|---|
| INVERTER OUTPUT | |
| Rated Output Power | 5,000W |
| Max. Peak Power | 10,000VA |
| Rated Output Voltage | 230Vac (L / N / PE single-phase) |
| Load Capacity of Motors | 4HP |
| Rated AC Frequency | 50 / 60 Hz |
| Waveform | Pure sine wave |
| Parallel Capacity | 1 – 6 units (single / three phase) |
| BATTERY | |
| Battery Type | Li-ion / Lead-acid / User-define |
| Battery Voltage | 48 Vdc |
| Voltage Range | 40 – 60Vdc |
| Max. MPPT Charging Current | 100A |
| Max. Mains / Generator Charging Current | 60A |
| Max. Hybrid Charging Current | 100A |
| PV INPUT | |
| Num. of MPPT | 1 |
| Max. PV array power | 5,500W |
| Max. input current | 22A |
| Max. Voltage of Open Circuit | 500Vdc |
| MPPT Voltage Range | 120 – 450Vdc |
| MAINS / GENERATOR INPUT | |
| Input Voltage Range | 90 – 280Vac |
| Frequency Range | 50 / 60Hz |
| Bypass Overload Current | 40A |
| EFFICIENCY | |
| MPPT Tracking Efficiency | 99.9% |
| Max. Battery Inverter Efficiency | 92% |
| GENERAL | |
| Dimensions | 446.9 x 350x 133mm (1.47 x 1.15 x .044ft) |
| Weight | 13kg (28.66lb |
| Protection Degree | IP20, indoor only |
| Operating Temperature Range | -10 – 55°C |
| Noise | ≤60dB |
| Cooling Method | Forced air cooling with adjustable air speed |
| Warranty | 18 months |
| COMMUNICATION | |
| Embedded Interfaces | RS485 / USB / Dry contact |
| External Modules (optional) | Wi-Fi / GPRS |
| CERTIFICATION | |
| Safety | CE (IEC62109-1 / 2) |
| EMC | EN61000 |
| RoHS | Yes |
