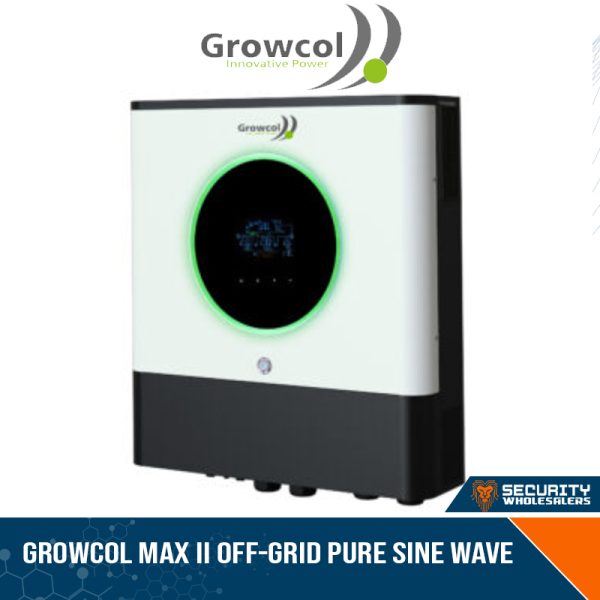

Description
- Customisable status LED bar with RGB lights
- Touchable button with large 5″ coloured LCD
- Built-in Wi-Fi for mobile monitoring (Android / iOS App is available)
- Supports USB On-the-Go function
- Data log events stored in the inverter
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC / PV output usage timer and prioritisation
- Selectable high power charging current
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- Built-in DC output for DC fan, LED bulb, router and so on
- Parallel operation with 6 units
| Feature | MAX II 8000 |
|---|---|
| Rated Power | 8000VA / 8000W |
| Parallel Capability | YES, 6 units |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170 ~ 280 VAC (For Personal Computers) / 90 ~ 280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Surge Power | 16000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (For Personal Computers) / 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | < 75W |
| DC Voltage | 12 VDC ± 5%, 100W |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Range @ Operating Voltage | 90 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Solar Charge Current | 150A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 150A |
| PHYSICAL | |
| Dimension (D x W x H, mm) | 158.4 x 503.6 x 530.8 |
| Net Weight | 20 kg |
| Communication Interface | USB / RS232 / RS485 / WiFi / Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| STANDARD | |
| Compliance Safety | CE |
