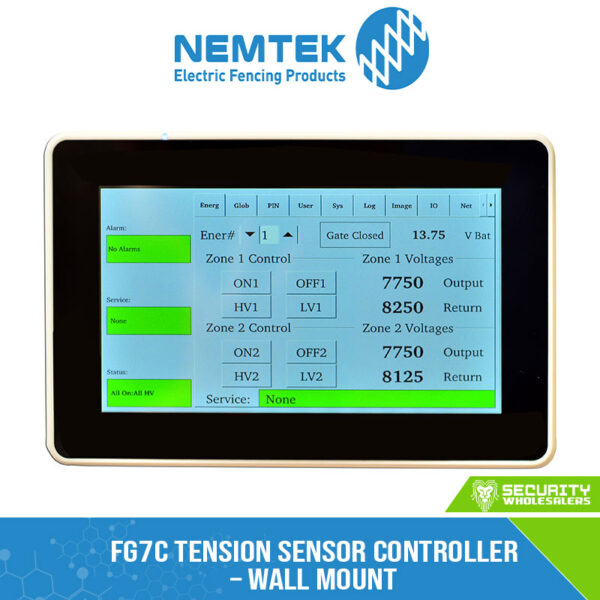

FG7C Tension Sensor Controller – Wall Mount [E-FG7C/TW/WM]
R9,205.00
The FG7C Tension Sensor Controller is a seven-inch LCD display screen that can be used to control up to 31 tension wire sensors and a network IO card. The FG7C is available in both a wall and a panel mount version.
Features:
- Graphic images of the site with zones and the fence condition can be displayed on the LCD screen
- Commands can be sent to the tension wire sensors to configure them and adjust their sensitivity.
- Logs containing system details are recorded.
- Allows for three different types of user with different access levels to be set up.
- Can be configured to allow TCP/IP connectivity for integration with third – party software and systems.
Specifications:
| Enclosure size | Wall Mount – H128mm x W198mm x D32mm Panel Mount – H155mm x W220mm x D45mm (Depth above panel 7mm) |
|---|---|
| Weight | 450g |
| Mains supply voltage | 10 – 15Vdc |
| Current consumption | 450mA with the LCD display on |
| Operating temperature | -10°C – 55°C |
| Operating humidity | 10% – 90% (non-condensing) |
