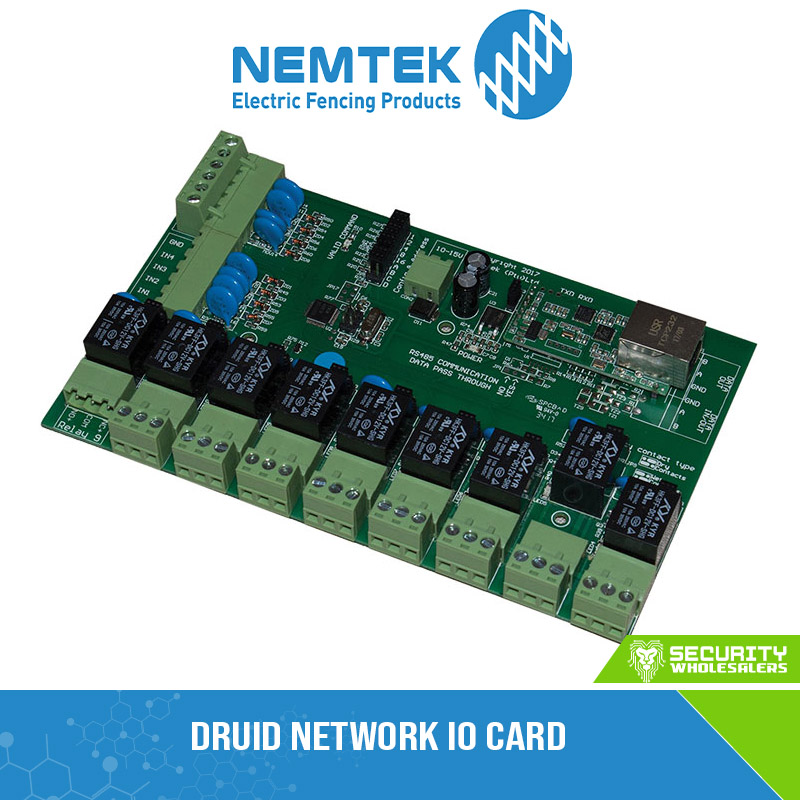

Features:

• 8 digital inputs
• 8 plus 1 relay outputs (8 user relays + 1 communication relay)
• Robust surge protection is included on all inputs and outputs
• All relays can be individually configured to be independent dry contacts or common-ground wet contacts with 12V nominal output
• Each relay has a very useful LED indicator to show if the relay is energized
• 3 communications debug LED indicators for TX, RX and VALID COMMAND
• 1 power-on LED indicator
• In addition to the input states, the IO card also reports back temperature and supply voltage level
• Up to 31 unique addresses can be set using on-card jumpers
• Designed to mount into a Nemtek battery-backed power pack (PP-2.0AMP)
